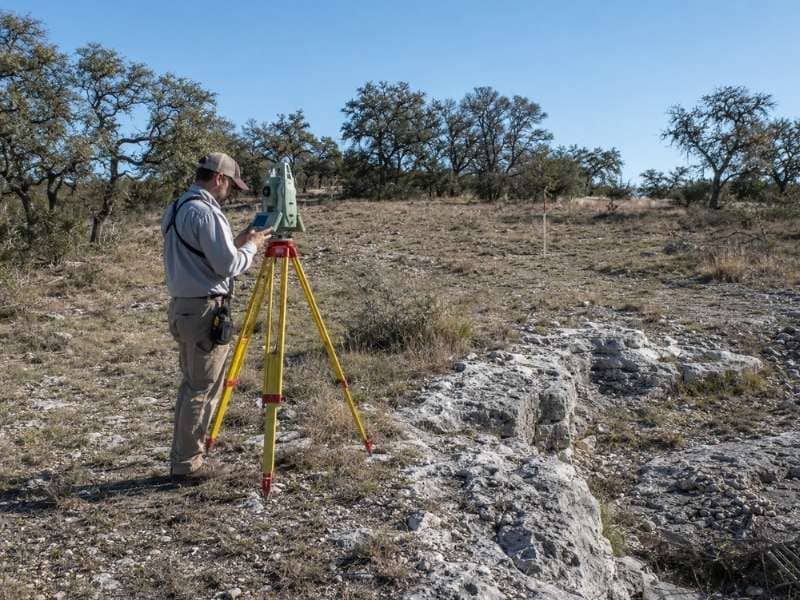

Building on limestone terrain starts with knowing the shape of the ground, and a topographic survey gives you that. New Braunfels has plenty of rocky, uneven land. Before a foundation design is final, the designer needs to see how the land rises and falls. A topographic survey maps those elevations and surface features. So the design can meet the land as it really is. On limestone terrain, where the ground can shift sharply, that early map saves a lot of trouble.

Rocky ground looks solid and simple, yet it hides real challenges. The survey brings those into view before construction begins.

Surface Shape Matters Before the Foundation Concept Is Finalized

The surface shape matters a great deal before the foundation concept is set. A designer uses the existing elevations to understand where a building must meet the land. On uneven limestone terrain, that meeting point changes across the site. So knowing the ground’s shape early shapes the whole foundation approach. Guessing at it leads to costly changes later.

This is why the survey comes first. It shows the highs, lows, and slopes across the property. So the designer can plan how the foundation sits on the real ground. Say one side of the site drops away quickly, the foundation concept has to account for that. So the survey feeds the design directly. It gives the designer the facts to plan a foundation that fits the terrain. On rocky, uneven land, starting with that surface shape is what keeps the design realistic.

What Terrain Features Should the Survey Capture?

A survey should capture the terrain features that affect how you build. On limestone terrain, several surface elements can shape the design. So the survey locates them, giving the designer a full picture of the site. Knowing these features early helps the design work with the land, not against it.

Here are the terrain features a survey on rocky ground often captures:

• Exposed rock and limestone outcrops that rise above the surface
• Abrupt grade changes where the land drops or climbs sharply
• Drainage paths that show where water moves across the site
• Existing walls, structures, and improvements already in place
• Notable slopes that affect building placement and access

Each feature carries meaning for the design. An outcrop might block a building spot, and a steep grade change might call for special handling. So the survey records these details clearly. That lets the designer plan around the real conditions. On limestone terrain, these features matter more than on flat land. So capturing them well gives the design team what they need to build smartly.

Contours Turn Uneven Ground Into Usable Design Information

Contours turn uneven ground into information a designer can actually use. A contour line connects points of equal height, showing the land’s shape at a glance. On rocky, sloped terrain, contours make the elevation changes easy to read. So the designer can visualize the whole site’s rise and fall from the map. That’s far better than trying to picture it from memory.

This visual clarity helps in real ways. Contours show where the land is steep and where it levels out. So the designer can spot the buildable areas and the tricky ones quickly. On limestone terrain, where the ground varies a lot, this matters. So the contour mapping becomes a working tool, not just a picture. It lets professionals understand the site’s shape and plan around it. Turning messy, uneven ground into clear contour lines is one of the survey’s most useful jobs.

Rock at the Surface Is Not the Same as Subsurface Investigation

Rock at the surface is not the same as knowing what’s underground. This is an important distinction. A topographic survey maps what you can see and measure on the surface, including exposed rock. It does not tell you how deep the rock goes or what lies beneath it. So the survey answers surface questions, not subsurface ones.

Keeping these separate protects your project. The survey shows where limestone shows at the top, which helps with layout and grading. But how deep that rock extends is a different question, answered by geotechnical work. So you don’t rely on the topo for underground answers. A geotechnical investigation handles that, testing what’s below the surface. So the survey and the subsurface study each have a role. The topo maps the visible terrain, and the geotechnical work explores underground. On limestone, understanding both surface and subsurface matters, but they come from different studies.

How Can Better Terrain Data Reduce Redesign?

Better terrain data reduces redesign by catching surface constraints early. When a designer starts with accurate elevations and features, they plan around the real ground from the beginning. So fewer surprises appear later. That means fewer times the plan has to change midway, which saves time and money on a project.

This benefit is real on limestone terrain. Without good data, a designer might advance plans, then discover a major rock outcrop or steep drop in the way. So the design would need reworking, sometimes late in the process. With a solid topographic survey, those constraints show up first. So the design accounts for them from the start. That early knowledge prevents the expensive cycle of designing, discovering a problem, and redesigning. So better terrain data pays off. It lets the project move forward smoothly, built on an accurate picture of the challenging ground.

Frequently Asked Questions

Can a topographic survey map visible limestone outcrops?

Yes. Surveyors can locate exposed rock and limestone outcrops on the surface. These features affect building placement and grading, so mapping them helps the designer plan around the rock that shows above the ground.

Does topographic surveying determine how deep rock extends underground?

No. A topographic survey covers surface conditions only. How deep the limestone extends is a subsurface question, answered by a geotechnical investigation, which tests what lies beneath the ground rather than what shows on top.

Should a retaining wall be included in the survey?

Yes, when it’s within the scope. Surveyors can locate existing retaining walls and their elevations. On sloped limestone terrain, these walls matter, since they show how earlier grading handled the changing ground.

Can contour data be used by both an architect and civil engineer?

Yes. Contour data serves multiple design disciplines. The architect and civil engineer can both work from the same contours, so their plans relate to the same accurate picture of the site’s shape.

What site changes would justify updating the topo before construction?

Grading, clearing, demolition, or new nearby work can all change surface conditions. When the ground no longer matches the original map, updating the topo keeps the design based on current, accurate terrain data.
